Fully Automatic FISH Pre-treatment System
Fully Automatic FISH Pre-treatment System is an instrument used in pathology, independently developed and produced by Wuhan HealthCare Biotechnology Co., Ltd. It completely replaces the traditional manual operation mode by the automatic and standardized pretreatment of paraffin sections/slices [formalin-fixed paraffin-embedded (FFPE)] in fluorescence in situ hybridization (FISH) detection. It can process heated sample slides quickly, dewaxing and perform enzymatic digestion to release nucleic acids for qualitative or quantitative detection of nucleic acids in the tissue.
Fully Automatic FISH Pretreatment System can bring tremendous value to clinical and medical laboratories
1. Improve FISH quality detection
-
Fully automatic wax removal, enzymes digestion and other FISH pre-treatment operations.
-
Unique function design, compatible with various types of sample pretreatment.
-
Effectively reduce manual operation errors.
-
Significantly improve FISH probes hybridization success rate.
2. Reduce FISH detection difficulties
-
Completely replace manual pre-treatment, easy operation learning.
-
Easy FISH detection process s standardization.
-
Easy FISH testing laboratory quality control.
3. Reduce consumption and increase efficiency
-
Hybridization success rate is more than 95% after sample processing.
-
Reduce duplicates detection rate and reduce FISH probe consumption.
-
Easy to operate, time-saving and labor-saving.
Comparison between traditional manual processing method
and HealthCare Biotech Fully Automatic FISH Pretreatment System (FAFPS)
|
Parameter |
Manual pre-treatment |
HealthCare Biotech FAFPS® device |
|
Reagent preparation |
Need |
No need |
|
Reagent hazard |
Toxic and polluting |
Non-toxic, environmentally friendly |
|
Operating mode |
Fully manual process |
Fully automatic process (including slides heating treatment) |
|
Operation steps |
Tedious |
Simple and convenient |
|
Operating time |
Long (4-5 hours) |
Short (2 hours) |
|
Technician requisition |
High |
Low |
|
Quality control |
Difficult |
Easy |
|
Sample type |
/ |
Surgical tissue, puncture, exfoliated cells, blood cells, etc. |
Fully Automatic FISH Pre-treatment System developed by Wuhan HealthCare Biotechnology Co., Ltd., can effectively and accurately achieve daily rapid FISH clinical detection.
Positive ALK
Positive HER-2
Device Parameters:
-
Volume: 70cm x 50cm x 100cm
-
Weight: 50kg
-
Voltage: 220V
-
Power: 1500W
-
Processing flux: 1-20 samples/batch
-
Processing time: 2 hours
-
Sample processing mode: Automatic
-

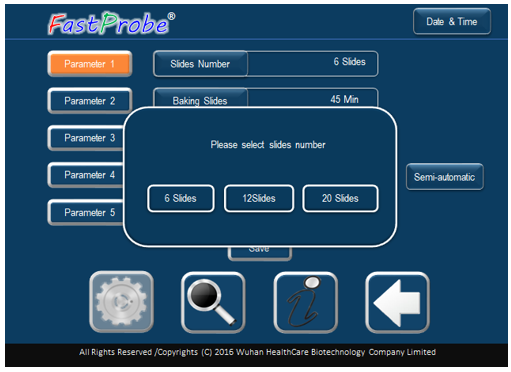

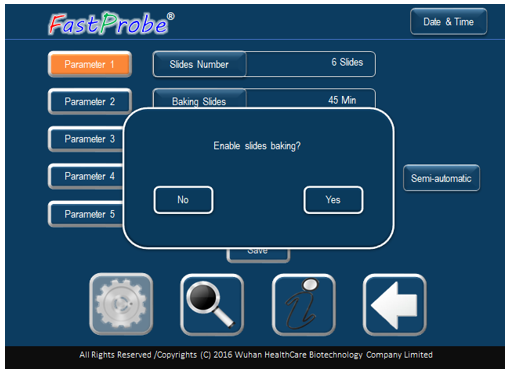

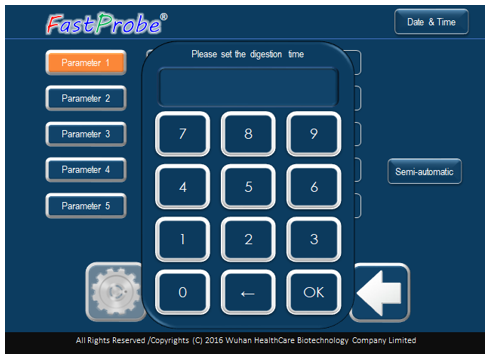

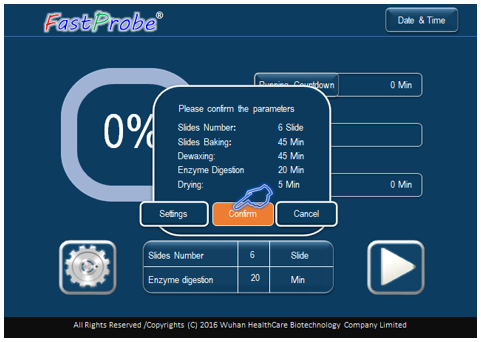

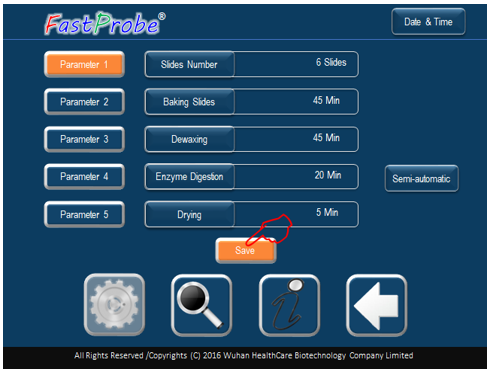

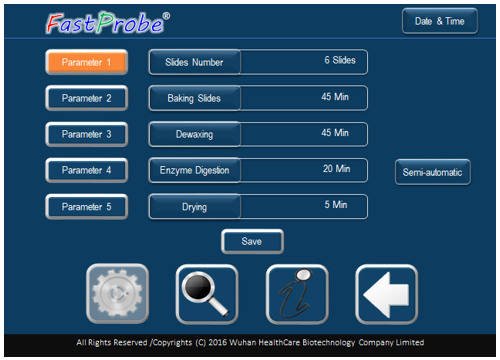

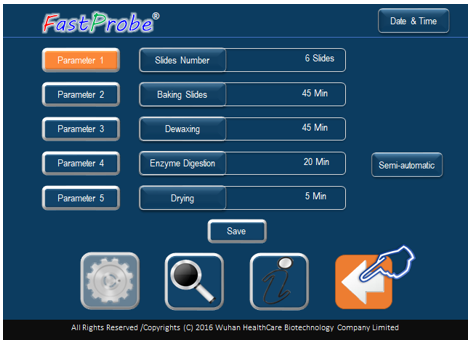

Program settings: Preset program, customizable
-

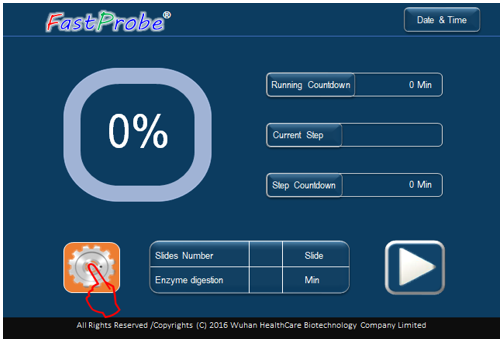

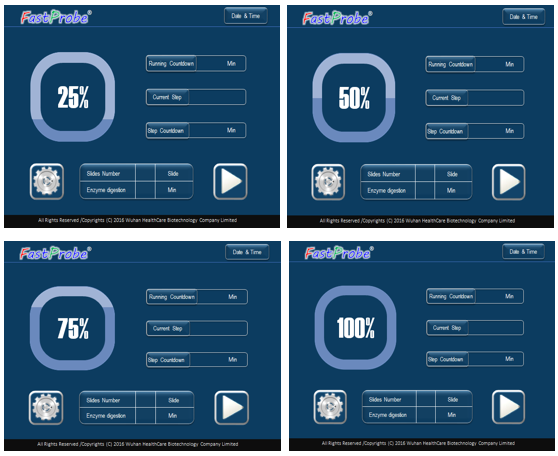

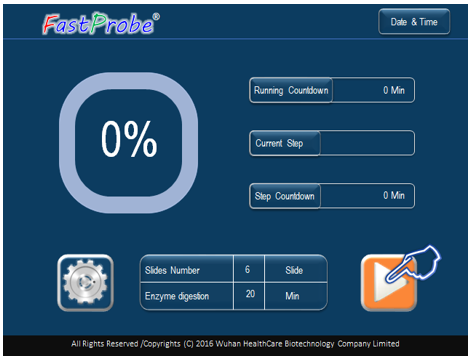

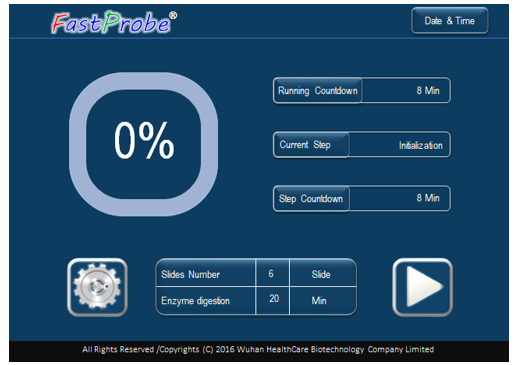

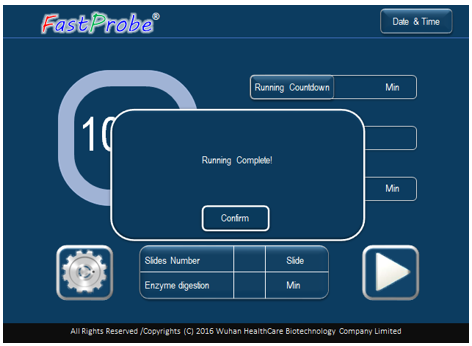

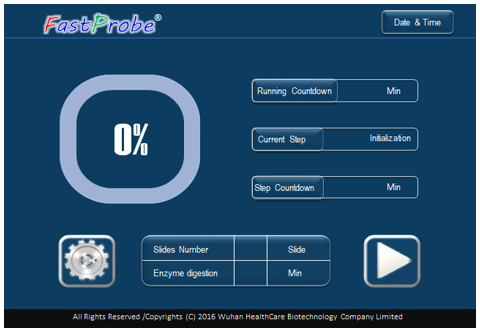

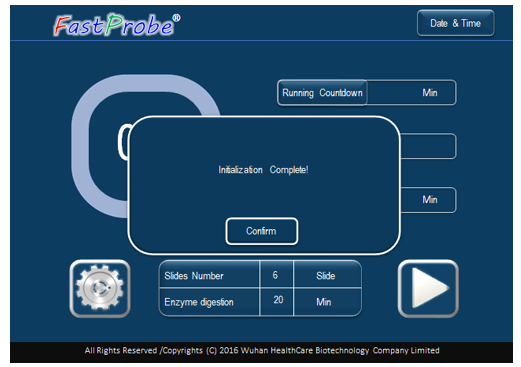

Operation process: Warm-up at boot >> Sample insertion >> Click Start >> Finish Processing
-
Liquid path cleaning: Whole machine automatic liquid path cleaning (At startup and at each batch processing completion)
-
Warranty: 3 years
-
Require laboratory corollary equipment: None
[Download] TL101 Engineer Manual
Supporting reagents:
|
Item |
Cat# |
Product Name |
Specifications |
|
Laboratory Routine Reagents |
CL-003 |
FISH Pretreatment Reagent Kit (CE-IVD) |
20 Tests/Box
|
|
CL-003 |
FISH Post-Hybridization Washing Solution (CE-IVD) |
20 Tests/Box
|
|
|
CL-012
|
In Situ Hybridization Staining Solution (Antifade DAPI, CE-IVD) |
10 Tests/Box
|
|
|
Laboratory Routine Apparatus |
TL-101 |
FISH Slides Automatic Pretreatment System (CE-EMC)
|
